Description

This load skate kit is designed for transporting large machinery and equipment across flat surfaces in industrial and workshop environments. With a total load capacity of 30 tonnes, the system includes two steerable front skates and two fixed rear skates, connected by adjustable linking bars to suit different load widths. Each unit is constructed from powder-coated steel and fitted with non-slip rubber decks and nylon wheels for controlled movement on hard surfaces.

The four-piece configuration provides improved load stability and even weight distribution when handling heavy or oversized equipment. The steerable front skates allow controlled directional movement, making it easier to position loads in confined or complex spaces. This system is commonly used for plant relocations, machinery installation and maintenance tasks where precise handling and stability are required.

Features

• 30 tonne (30,000kg) load capacity
• Designed for use on clean and even concrete floors
• Four-piece system – 2 steerable front skates and 2 fixed rear skates
• Adjustable linking bars allow spacing to be set to suit different load widths and configurations
• Steerable front skates provide controlled directional movement
• Heavy-duty powder-coated steel construction
• Non-slip rubber decks help secure and stabilise loads
• Nylon wheels for smooth movement on suitable hard surfaces
• Designed to provide stable support and even load distribution

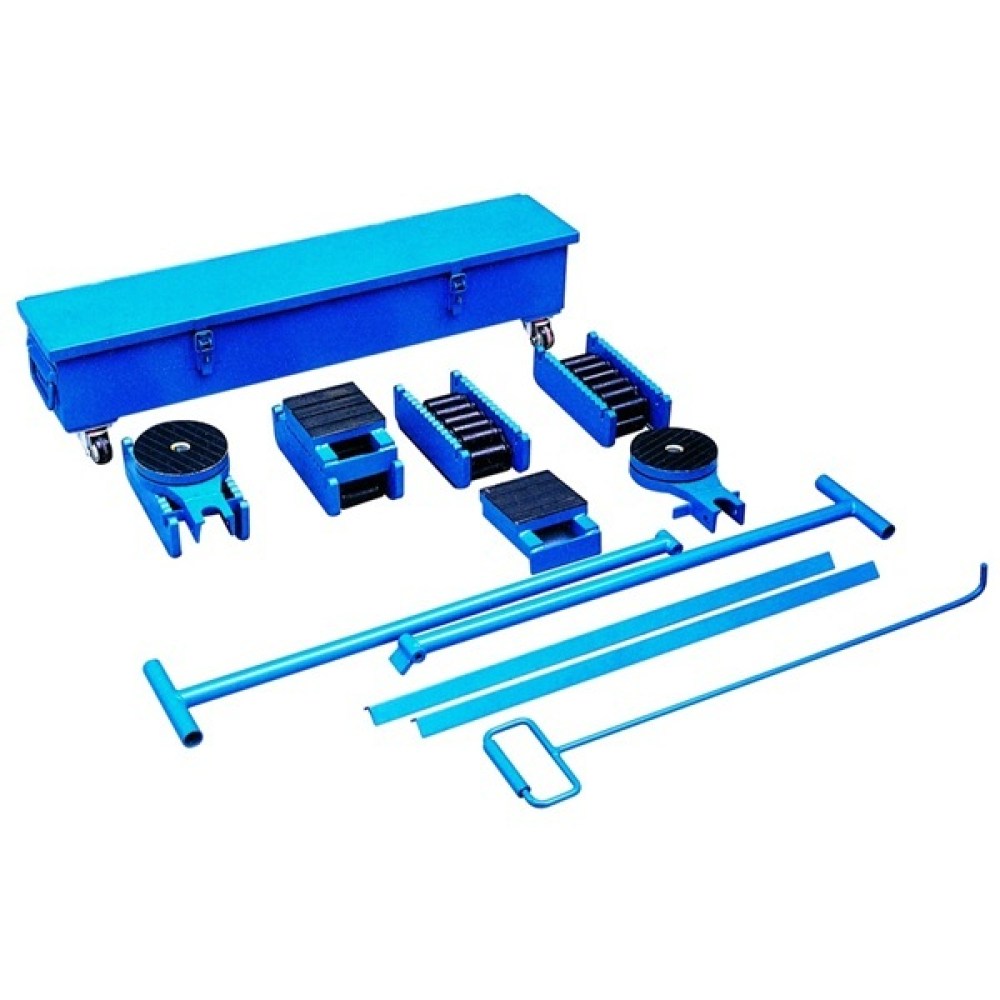

Kit Includes

• 4 roller skates
• 2 turntables
• 2 packing plates
• 2 steering handles
• 2 link-up bars
• 1 draw bar

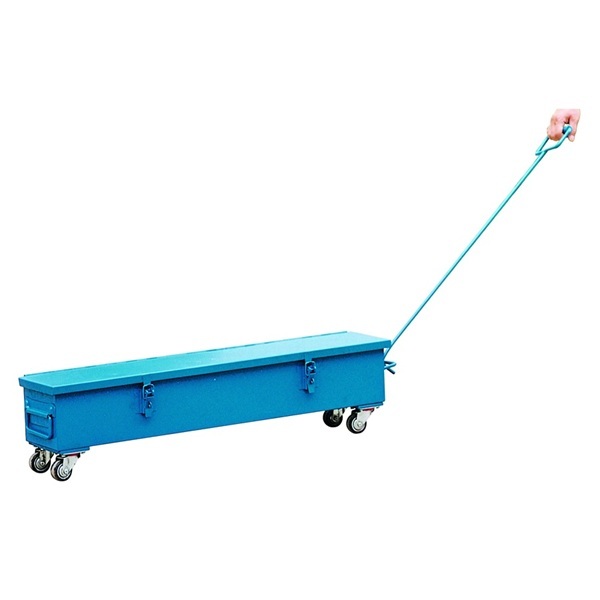

• 1 metal storage box with castors

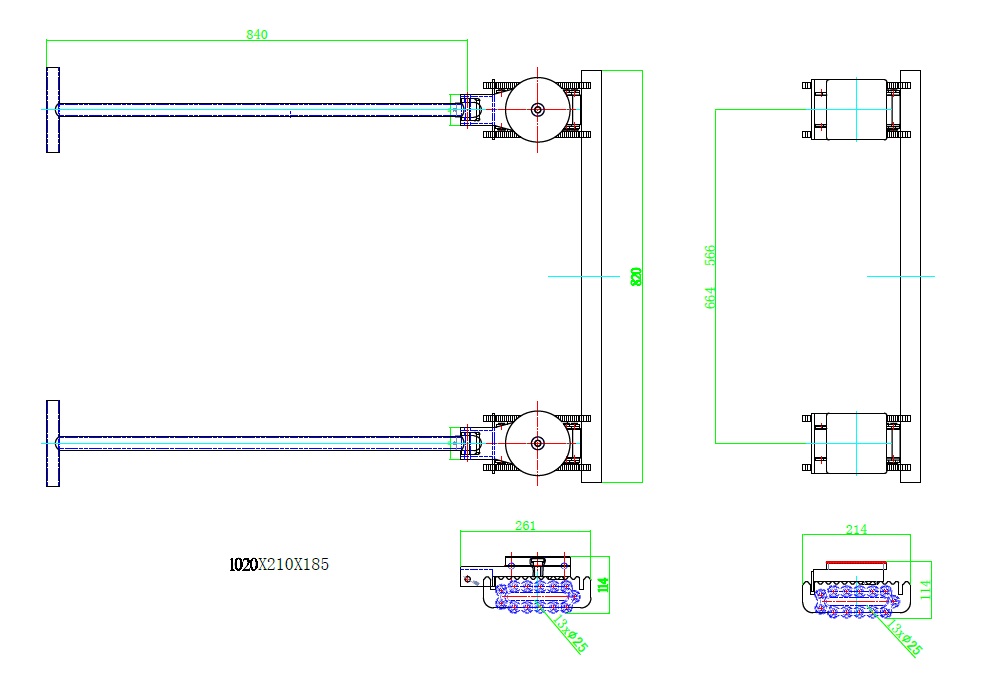

Specifications

• Model: SK30
• Capacity: 30T / 30,000kg
• Leg Support: 120mm
• Width Support: 120mm
• Total Height: 115mm
• Roller Diameter: 24mm
• Swivel Top Diameter: 130mm
• Weight: 58kg

Operating Information

Moving speed should not exceed 5m/min. Minimum turning circle: 3m.
