ISO Container Skate Assembly Kit – 32T Twist Lock System
ISO Container Skate Assembly Kit – 32T Capacity – Twist Lock System
- Product Code: MCS32N
- Category: Load Skates & Equipment
- Manufacturer: Mitaco
Availability:
Description
The MCS32N ISO Container Skate Assembly Kit is designed for safely moving standard ISO shipping containers and other heavy loads where forklifts or cranes are impractical. Ideal for transporting shipping containers, industrial machinery, prefabricated concrete structures and other oversized loads, this complete container moving system provides smooth, controlled movement on suitable hard, level surfaces.
Featuring a secure twist lock system, low fitting height and heavy-duty nylon rollers, the MCS32N container skate assembly provides excellent stability and manoeuvrability. The double roller steering design helps reduce rolling resistance, making large containers and heavy loads easier to move, steer and position.
Features
- Complete ISO container skate assembly kit supplied as pictured
- 32 tonne total capacity (16T front skate and 16T rear skate)

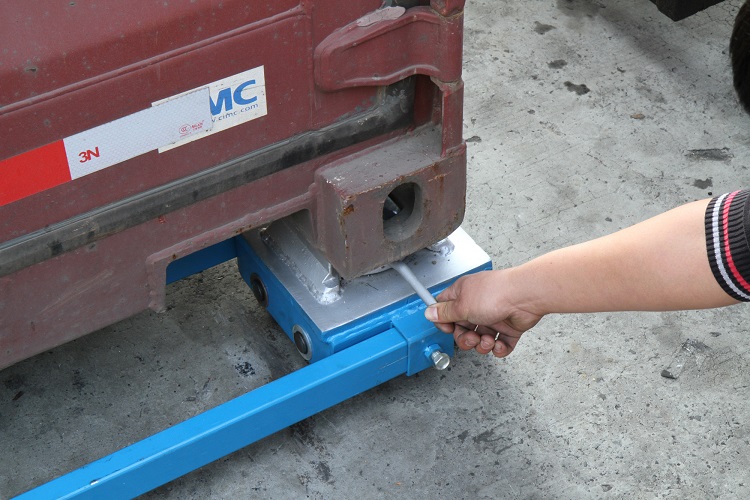

- Twist lock system securely locks the container to the skate assembly
- Designed for ISO shipping containers and heavy industrial loads
- Low 160mm fitting height for easier container loading
- Double roller steering design reduces friction for smoother movement
- Steering handle allows controlled direction changes
- Ideal for moving containers where forklifts cannot operate
- Suitable for industrial machinery, shipping containers and oversized loads
- Heavy-duty nylon rollers provide smooth movement on concrete surfaces
- Optional polyurethane wheels available upon request
- Maximum steering angle: 45° left and 45° right
Turning Circle
- 20ft container – approximately 6m radius
- 40ft container – approximately 10m radius
Specifications
Model: MCS32N
|
Specification |

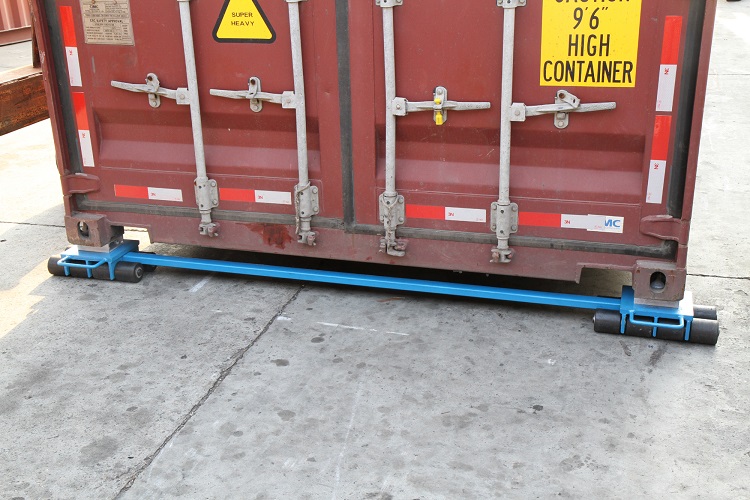

Front Skate |
Rear Skate |
|
Capacity |
16T |
16T |
|
Steering |
Fixed |
Steering |
|
Number of Rollers |
16 |
16 |
|
Castor Size |
85 × 90mm |
85 × 90mm |
|
Overall Dimensions |
2850 × 1030 × 160mm |
2500 × 300 × 600mm |
|
Net Weight |
160kg |
70kg |
|
Fitting Height |
160mm |
160mm |
|
Width of Track & Connecting Rod |
– |
2260mm |
|
Cassette Dimensions (L × W) |
800 × 570mm |
– |
Applications
Suitable for moving:
- ISO shipping containers
- 20ft and 40ft containers
- Industrial machinery
- Heavy plant and equipment
- Prefabricated concrete structures
- Oversized industrial loads
Important Information
This container skate assembly is designed for use on suitable hard, level surfaces only.

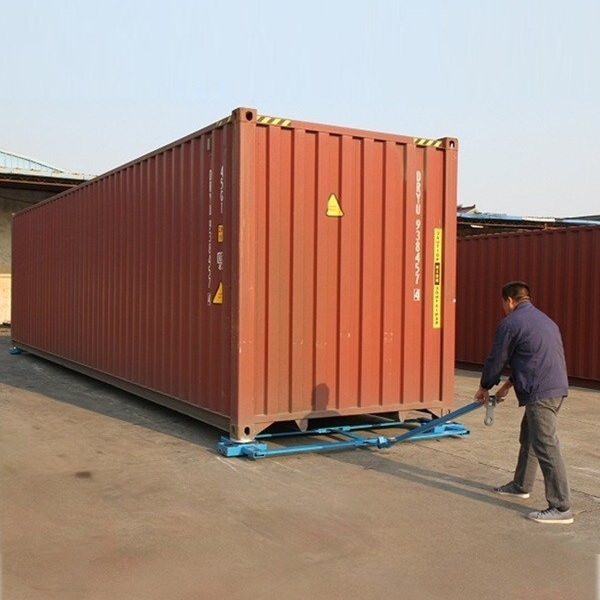

Please Note: Shipping container in images are not included. Images are for illustration purposes only to demonstrate the container skate system in use.
Spare Parts Availability
Replacement parts are available for the MCS32N Container Skate Assembly Kit, including:
- Replacement rollers
- Steering handles
- Other components available upon request
