Description

The MEMOV30 battery-powered, remote-controlled load skate is designed for moving and positioning heavy machinery and equipment with minimal manual effort. This self-propelled system combines wireless remote operation, powered drive and precision steering to provide controlled movement of heavy loads in industrial environments.

The MEMOV30 is rated for a 30T pulling capacity, with a 15T front and 15T rear load capacity. Its compact design and 360-degree steering make it suitable for manoeuvring heavy equipment in confined areas and around bends.

Features

• 30T pulling capacity
• 15T front / 15T rear load capacity
• Battery-powered and self-propelled
• Wireless remote control allows the operator to control the unit from a safe distance
• 360° steering for improved manoeuvrability
• Dual drive motors
• Variable speed control for precise positioning
• Travel speed up to 0.6km/h
• Direct-drive motors
• 4–6 hours operating time under full load, under ideal conditions
• 16 slave rollers and 4 traction rollers
• Designed for moving heavy machinery and equipment on suitable flat surfaces
• Maximum gradeability: 3% with rated load

Specifications

• Model: MEMOV30
• Pulling Capacity: 30T
• Load Capacity: 15T Front / 15T Rear
• Number of Traction Rollers: 4
• Number of Slave Rollers: 16
• Load Skate Dimensions: 1990 x 390 x 170mm
• Load Skate Weight: 147kg

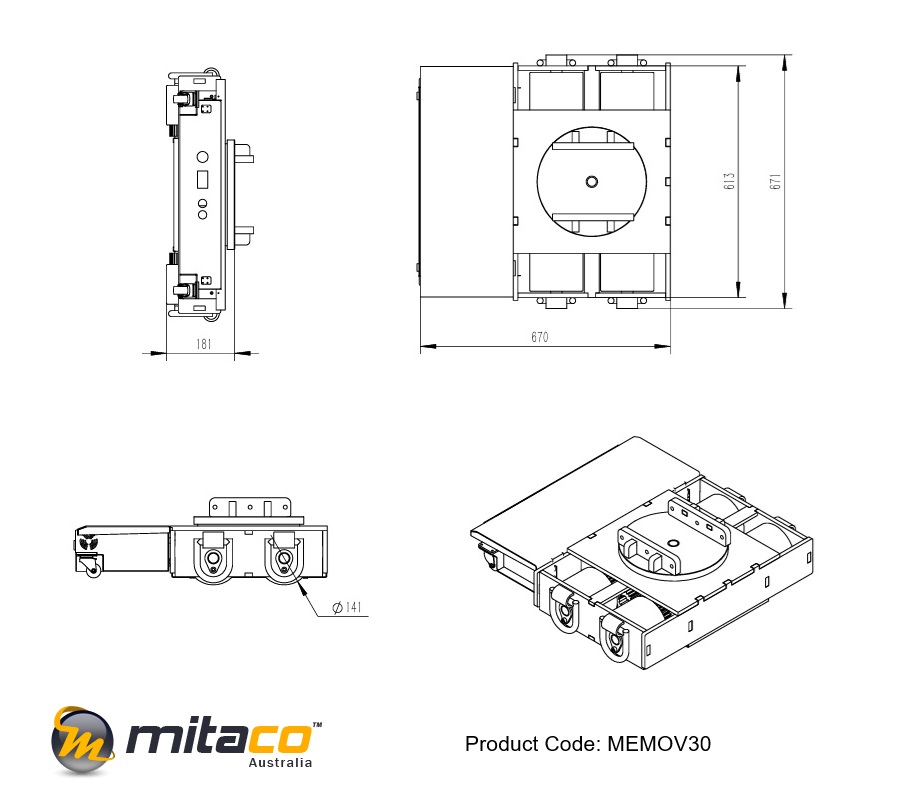

• Drive Unit Dimensions: 671 x 670 x 181mm
• Drive Unit Weight: 217kg
• Battery: 48V / 60Ah
• Travel Speed: Up to 0.6km/h
• Maximum Gradeability: 3% with rated load

Note: Available in 20T, 30T, 35T, 40T, 50T and 80T capacities. Optional hydraulic lift ram is available on selected models, excluding the 80T model.

Spare Parts Available: Spare parts are available for the MEMOV30

Demonstration Video:
