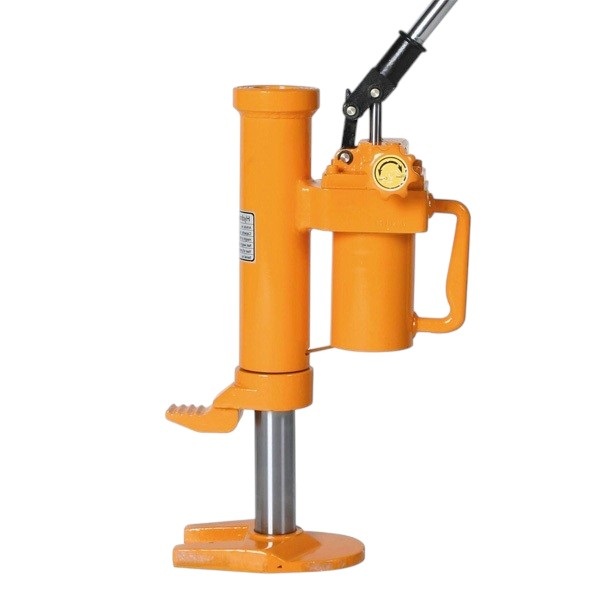

HM50 hydraulic toe jack with 5 tonne capacity for lifting heavy machinery and equipment
Download Brochure

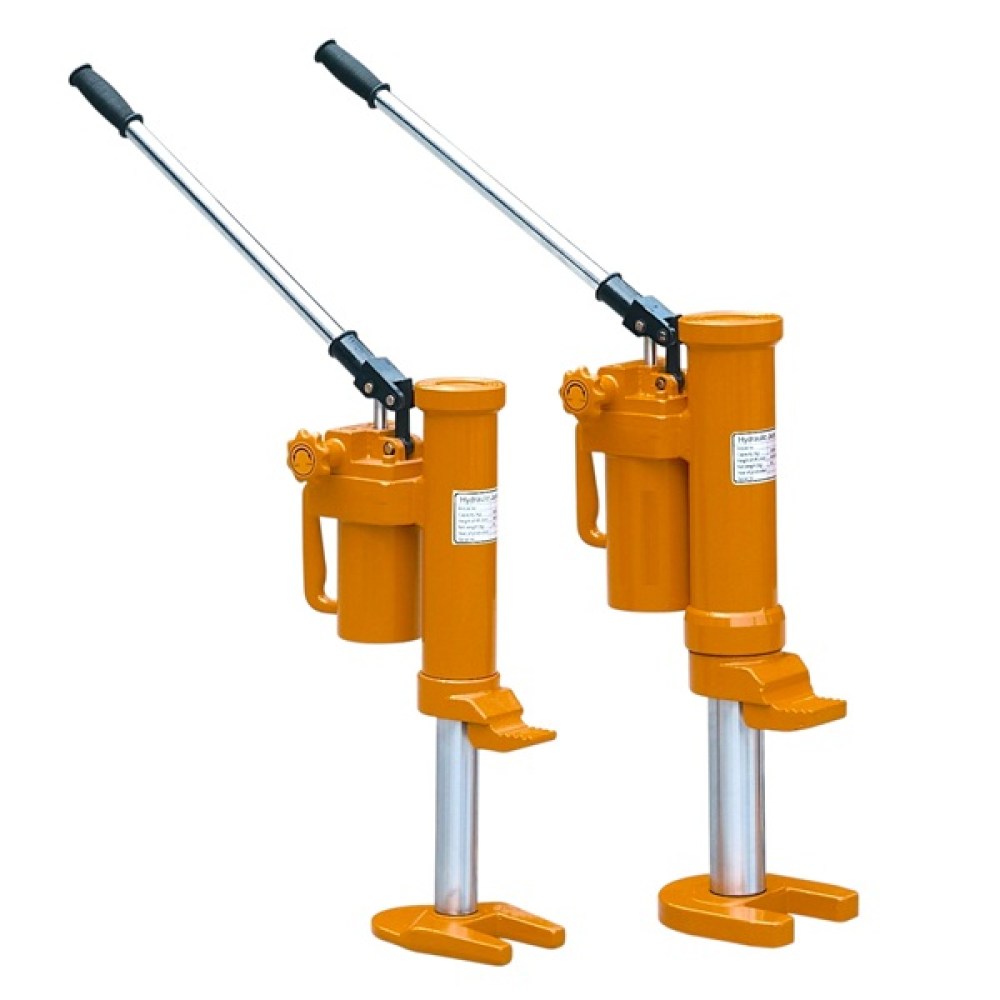

Hydraulic Toe Jacks – 5T & 10T Capacity

PDFPrintEmail
  • Product Code: HM50- see drop down menu for sizes
  • Category: Load Skates & Equipment
  • Manufacturer: Mitaco
Variant price modifier:
Salesprice with discount
Sales price $550.00
Sales price without tax $500.00
Total discount:
Other Variants
Choose a variant

Availability:


Description

Hydraulic toe jacks provide a practical solution for lifting heavy machinery, equipment and other loads where access underneath the load is limited. The low-profile lifting toe allows loads such as containers and large industrial equipment to be raised with minimal clearance.

The compact design allows the jack housing to rotate through 360 degrees, making the jack easier to position in confined or awkward areas. Lowering speed can also be accurately controlled for safer load positioning.

Features

  • Available in 5T and 10T capacities
  • Low-profile lifting toe for lifting loads with limited underside clearance
  • 360-degree rotating housing allows flexible positioning
  • Adjustable lowering speed for controlled lowering
  • Built-in overload protection
  • Removable pump lever
  • Compact and stable design
  • Suitable for lifting containers, machinery and large industrial equipment
  • Manufactured to CE / US standards
  • Meets ASME ANSI B30.1.1986

Not suitable for use with vehicles.

Specifications

Models

HM50

HM100

Capacity

5000kg / 5T

10,000kg / 10T

Lift Range – Foot

25–230mm

30–260mm

Lift Range – Head

368–573mm

420–650mm

Maximum Lever Force

38kg

40kg

Net Weight

25kg

35kg
